60 Inch Modular Drawer Cabinet
The 1524mm / 60-inch modular drawer cabinet represents the largest and most powerful model in ROCKBEN modular drawer cabinet system. Built for extreme storage demands, it delivers unmatched capacity and strength, ideal for organizing oversized tools, equipments and large number of parts and components.
Due to its wide span, every drawer is equipped with 200KG load capacity double rail slide with 100% extension rate. With our reinforced support column and horizontal beam, the cabinet is capable of remain stable and robust. The 60-inch cabinet can be combined with 30-inch modular drawer cabinets to form a integrated storage system. The integration of extra large and medium storage space is a perfect choice for various storage needs.
Achieving reliable performance at 200 KG per drawer across a 1524 mm wide cabinet requires more than standard manufacturing tolerances. With 18 years of focused experience in heavy-duty industrial storage, ROCKBEN has refined the structural design, slide integration, and load distribution required to deliver a cabinet that performs consistently under full load across every drawer
Key Features of 30 Inch Modular Drawer Cabinets
• Width: 1524 mm / 60" — the widest single-unit in the ROCKBEN lineup, providing uninterrupted internal drawer width for long or oversized components
• Depth: 705 mm / 27.8", single depth configuration built for high-mass industrial storage
• Height: Available from 850 mm / 33.5" to 1500 mm / 59.1", or based on your requirements
• Drawers: Minimum 125 mm drawer height; all drawers equipped with 200 KG double rail slide with full extension

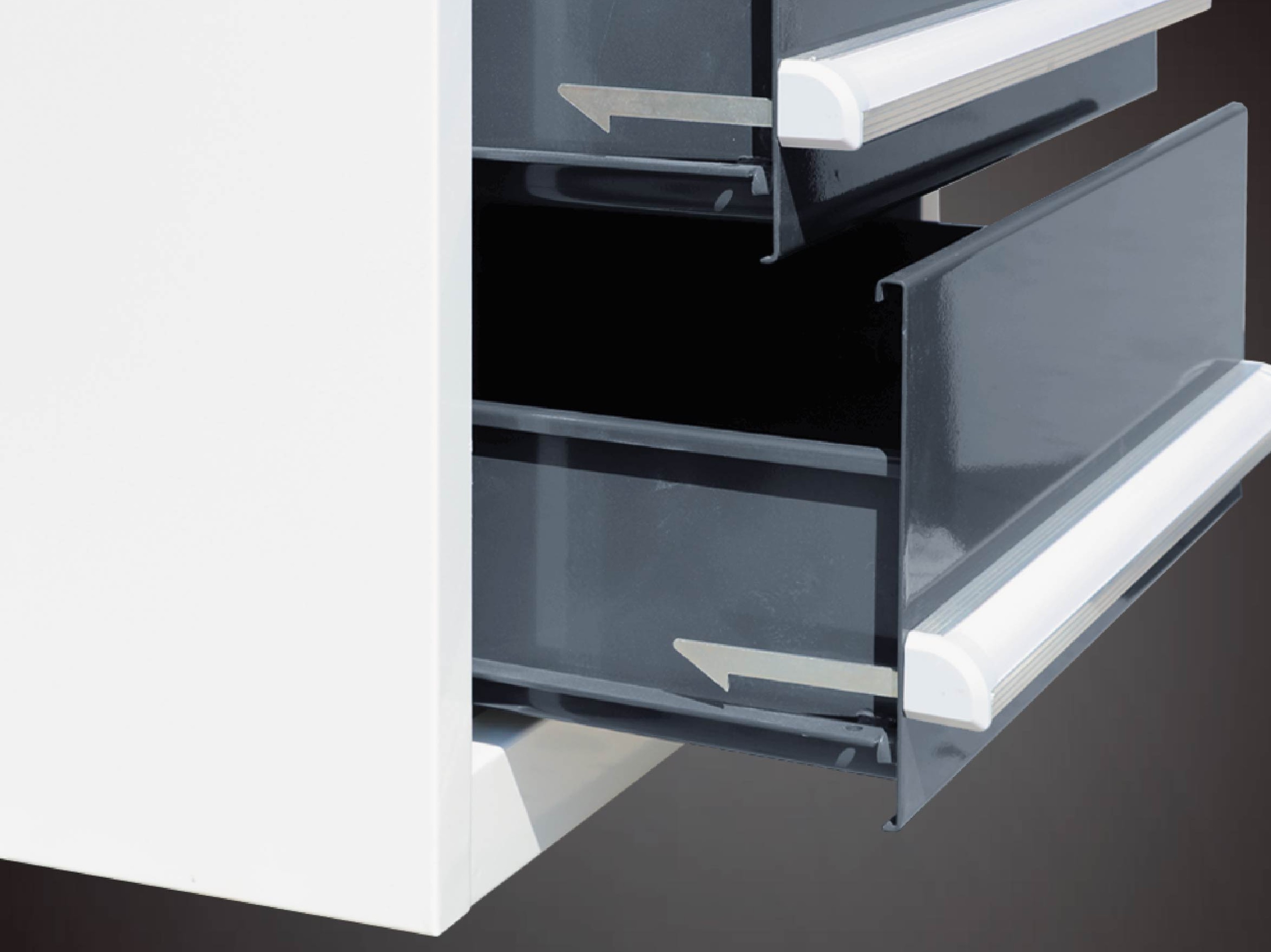

• Anti-tilt: Single drawer interlocking system standard across all configurations
60 Inch Modular Drawer Cabinet for Extra-Large Parts and High-Volume Storage
Maximum Drawer Capacity
Built for Heavy Equipment Storage
Suitable as a Workstation Base
Pre-configured Cabinets
Why Choose ROCKBEN as Your 60 Inch Industrial Tool Cabinet Manufacturer?
Reinforced Structure for Wide-Body Stability
A 60 inch cabinet under full load places significantly more stress on the frame than narrower units. ROCKBEN addresses this directly: the 60 inch cabinet features reinforced drawer slide support brackets, with an increased number of top and rear reinforcement ribs compared to standard-width models.
Steel Specification Built Around Load-Bearing Requirements
ROCKBEN uses 1.0 mm steel for cabinet body panels and 1.5–2.0 mm steel for structural components including support columns and reinforcement ribs. This approach keeps the cabinet at a manageable weight while ensuring the parts of the structure that carry the most stress meet a higher material standard.
One Manufacturer for Your Entire Modular Storage System
ROCKBEN produces the full modular drawer cabinet width range from 22.5 inch to 60 inch under the same manufacturing standards. If your workshop needs different sizes of storage units in the same project, we can supply them with consistent steel specifications, drawer systems, surface finish, and overall design language.
FAQ
Other Sizes of Modular Drawer Cabinet
